Hubless E-Bike Drivetrain Design
Course: Machine Elements II (Autumn 2023)
Technologies: Solidworks, Gear Ratios, Raspberry Pi, OpenCV, Arduino, SolidWorks, 3D Printing
[Click to Download the Full Report]
Summary

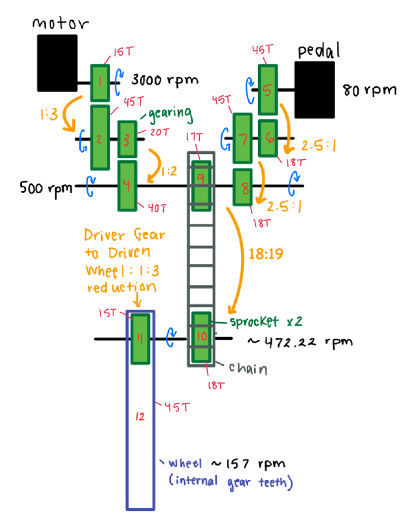

This project invovled created a functional drivetrain for a hubless pedal assisted e-bike running on a 350W DC motor. All gear/power ratios were determined to align with standard commuter bicycle conditions. A full SolidWorks assembly was created accounting for space and weight limitations.
Features
- Functional and implementable drivetrain
- Novel design for a hubless e-bike

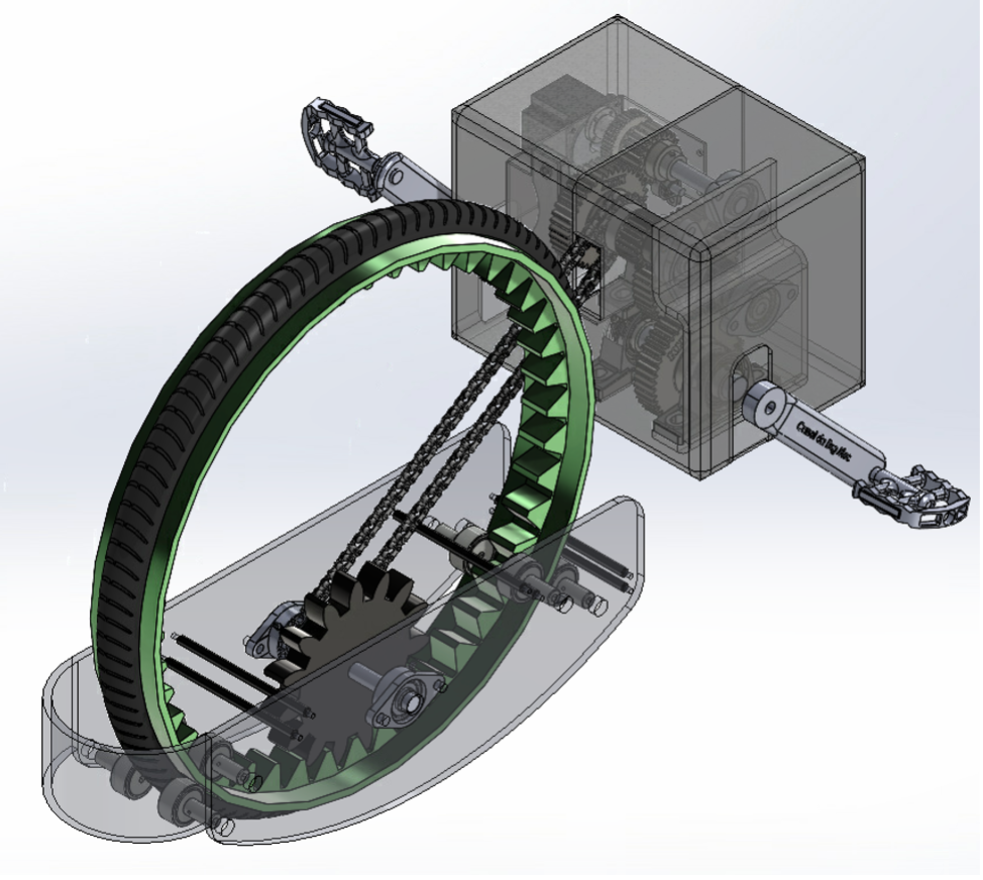

- Full SolidWorks assembly
- All existing parts sourced; all custom parts fully dimensioned
